A surf, or .srf file is a multi-use file, used for low detail visuals, collision files, cockpit files, and the building blocks of the visual .dnm files.

File structureEdit

The .srf contains a large number of lines with many numbers, each denoting a vertex, or a point in the file. These are then joined into polygons later in the code.

Header Edit

Each .srf file starts with a line with "SURF"

Vertex Section Edit

The first line of the code declares the file is, in fact, a surf file. Below that lies all the vertex information, giving the vertex's position on the X, Y, and Z axes:

V 0.286748 0.958462 5.806995

Polygon Section Edit

The polygons are then defined by the line number of the vertex. For example, the polygon below has four corners, vertices 1, 2, 25, and 26.

The colour is defined in the C line by an RGB code. This polygon is a medium grey. The polygon is then ended with the E.

V 25 26 2 1
N 0.153079 0.697158 5.892211 -0.309806 -0 -0.9508
C 127 127 127

If the face is to be set as bright, there will be a line in the face definition that is simply "B":

V 25 26 6 1
N 0.153079 0.697158 5.892211 -0.309806 -0 -0.9508
C 127 127 127

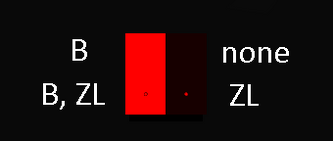

The last few lines of the .srf can define it as a transparent object (ZA), or a light (ZL). Setting it as a light increases the brightness and decreases how much it darkens at night.
